Track and Trace Ready 3-Axis
Laser Marking Heads
Laser Marking Heads

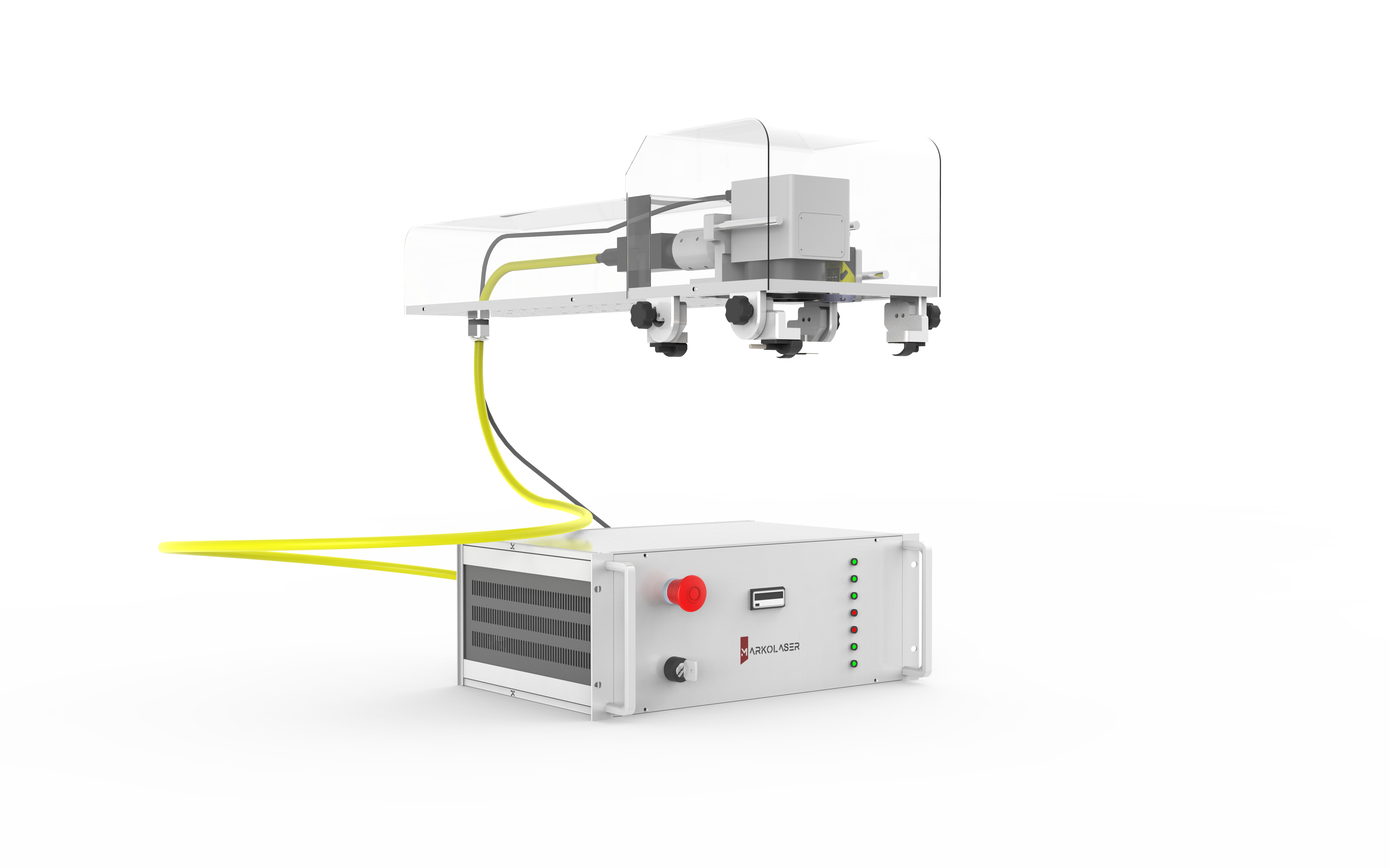

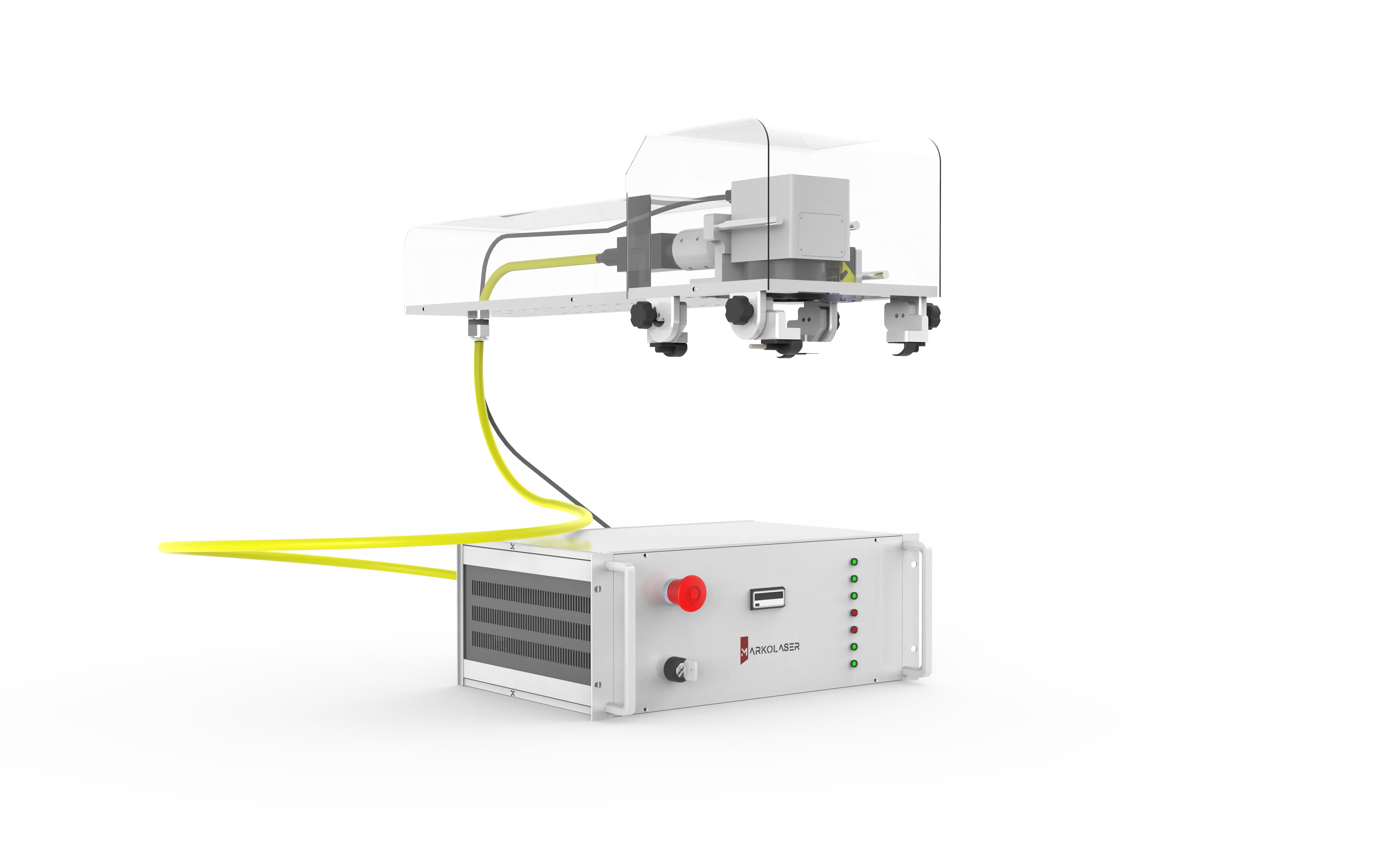

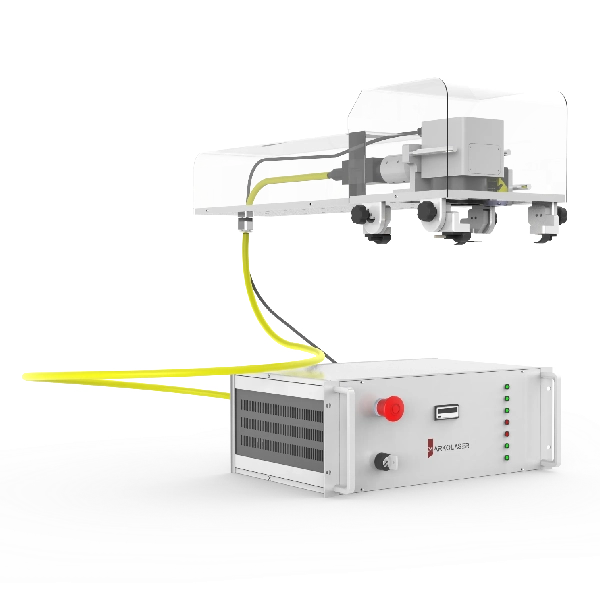

The new Markotracer is a complete Track and Trace solution from Markolaser for direct plug & play in-lineintegrations as well as for OEM integrators

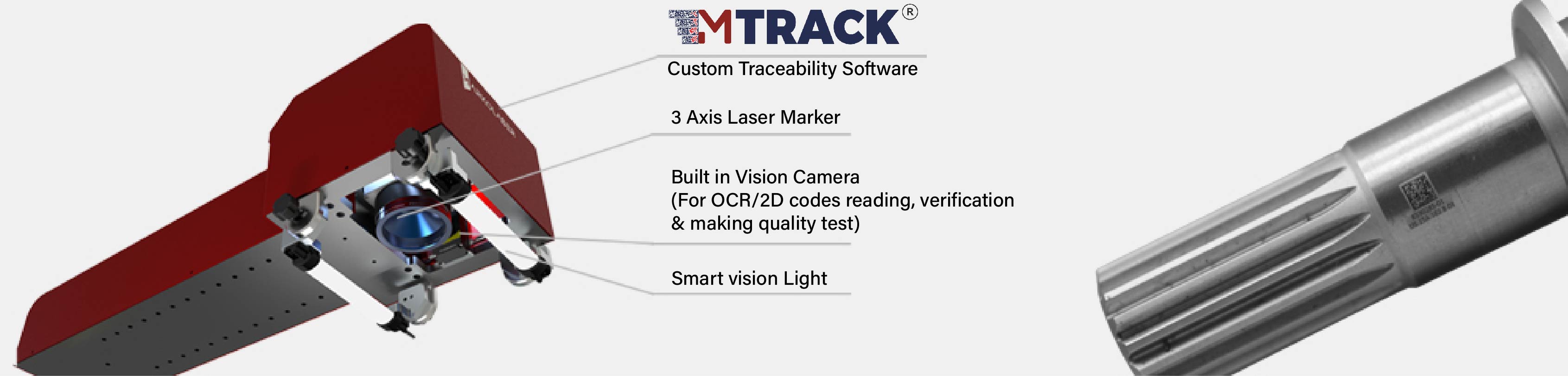

The marking head consists of a 3-Axis laser marking system integrated with camera system and vision lights for code reading andvalidation purpose.
The solution also comes with a customizable M-Track : control software with userfriendly GUI for traceability.
| Technical Specifications | Markotracer |
|---|---|
| Safety Enclosure | Class IV |
| Weight of Marking Head | 25 KG |
| Integrated code reader and vision lightings | - |
| Cooling method | Forced Air Cooling |
| Compatible Laser types | Co , IR, UV, Green |
| Options | |
| Maximum Marking Area | 120x120/300x300 mm |
| Marking Head Installation Direction | All Directions |
| Special Control BOX with HMI and M-Track GUI | - |
| Vision System (Positioning/Adjustment) | - |
| Interface | RS-232C/USB2.0/Ethernet |
| 3 Axis Marking | - |
 |
- |

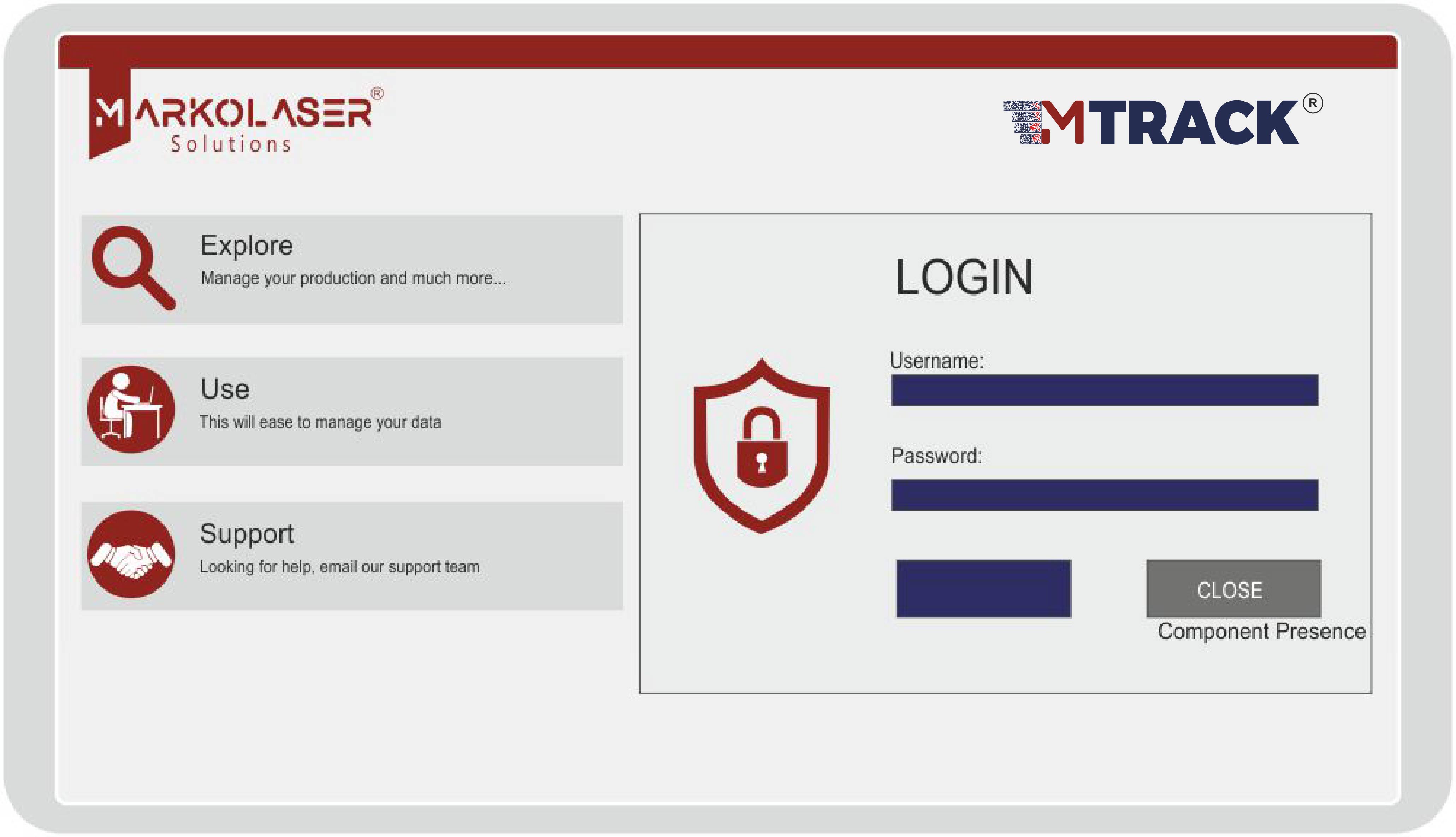

Administration Level & Authenticity
Various access levels can be set for operators, plant heads, retailers, vendors, etc. Unique login can be created for added security for different levels of data to be accessed.

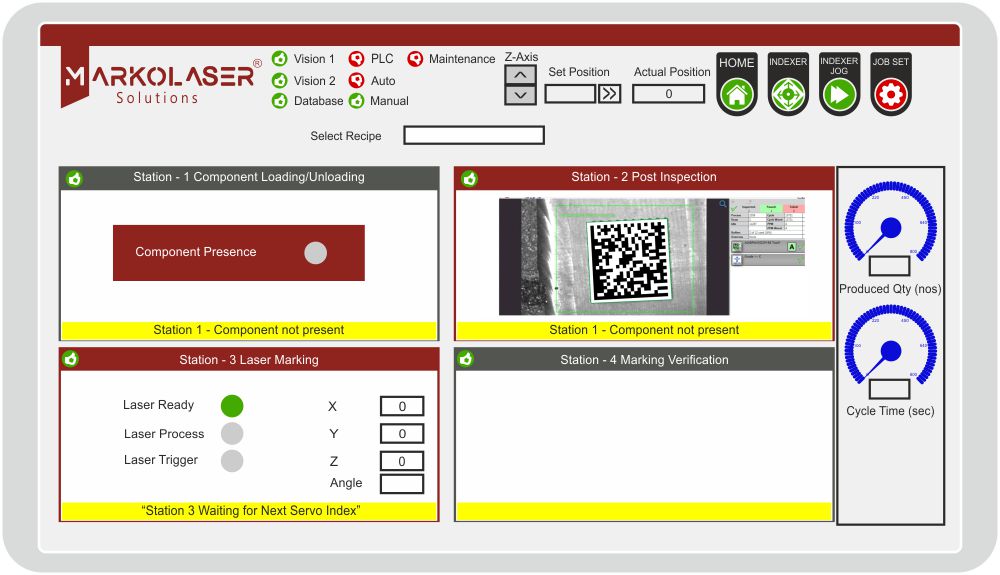

Traceability
Generating code and serializing the products, components, processes,materials & sub parts across the hierarchical flow. Marking with laser (DPM) or RFID according to situation and conditionhelps in data collection and updation to the server database/cloud for all levels like lot no., unit id, date, time. etc
Sensor Control Interface
Sensor Control Portal gives us a facility to monitor the parameters that we need to activate so that we can get an alarm if there is any emergency.
Traceability Gallery

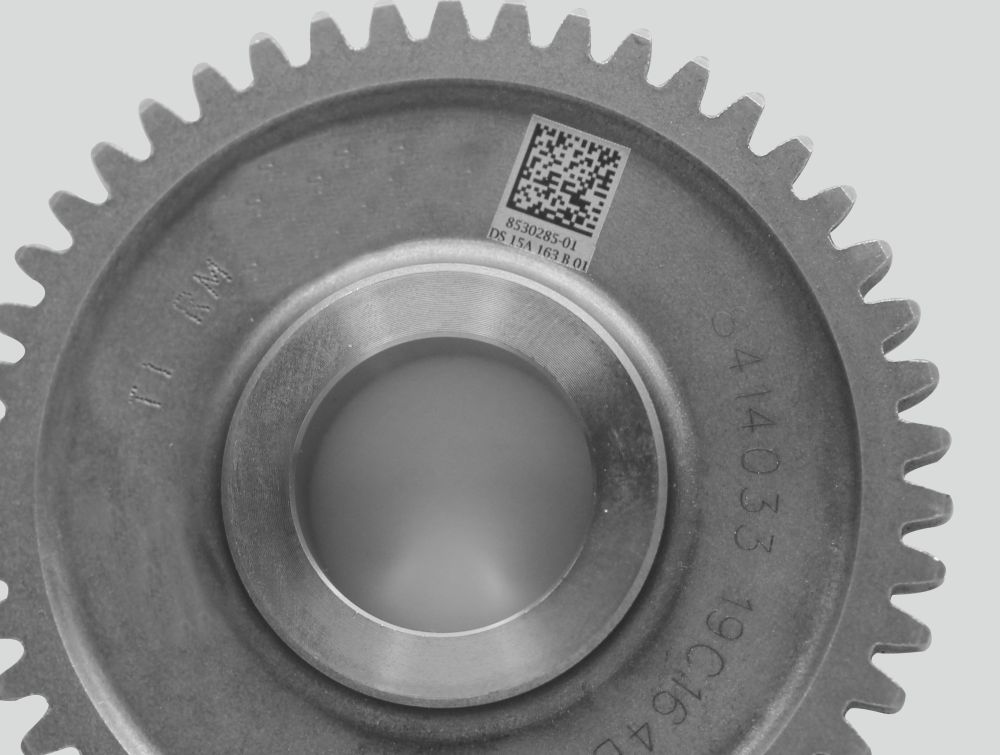

DPM on Automotive gear

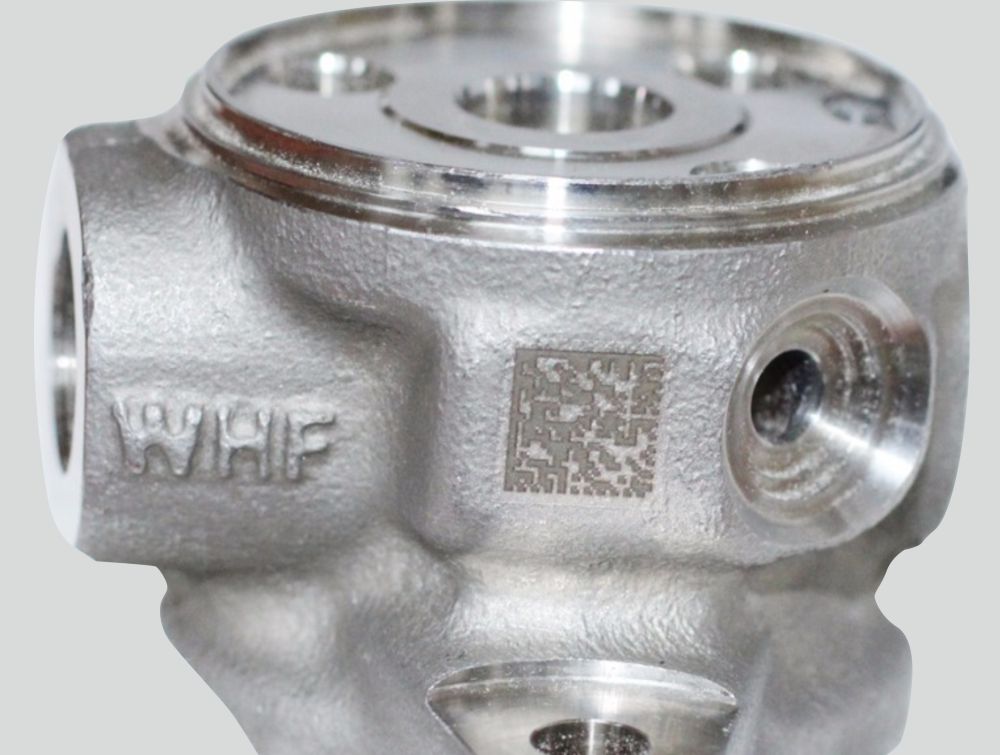

DPM on Aluminum Housing

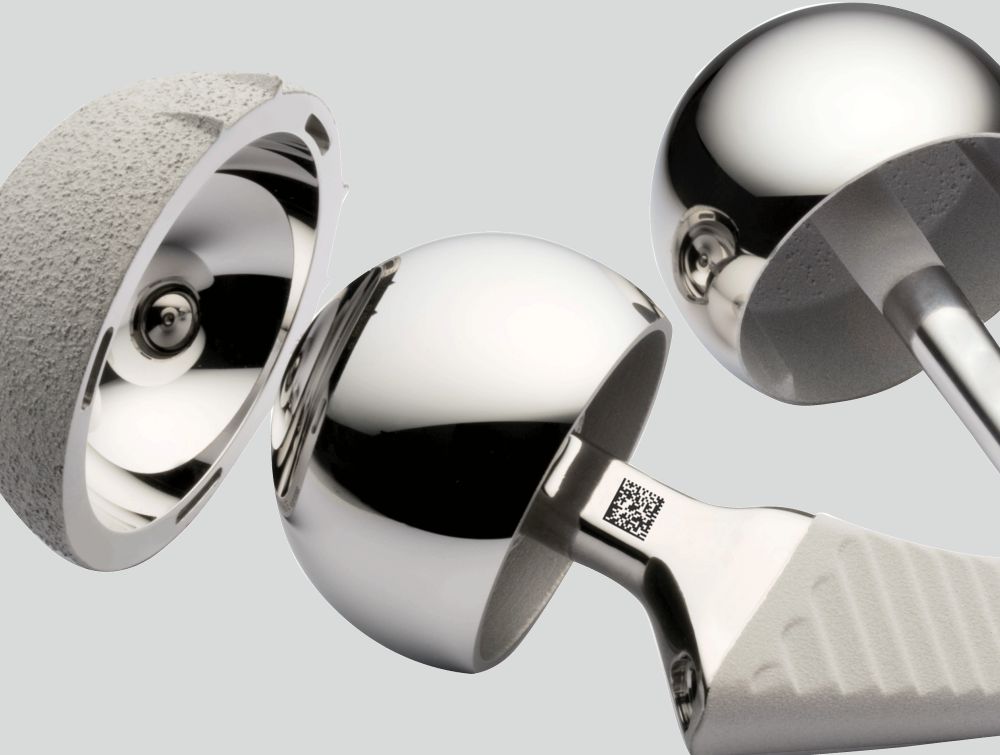

Marking of Data Matrix on
Medical Implants
