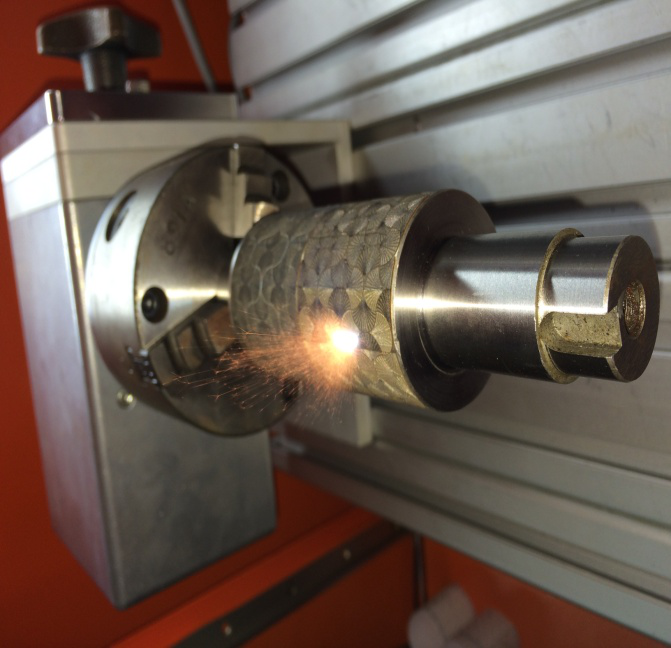

Rotary Attachment

We have one of the most reliable and robust indexing attachments available worldwide. The rotary attachment runs smoothly and no jerk would be observed while indexing. The rotary attachment can be controlled precisely with our "Markomark" marking software.

Application:

Rotary attachment is generally used to perform any laser operation on cylindrical surfaces. Laser operations that are generally performed by using rotary attachment are:

• Circumferential marking on cylindrical parts.

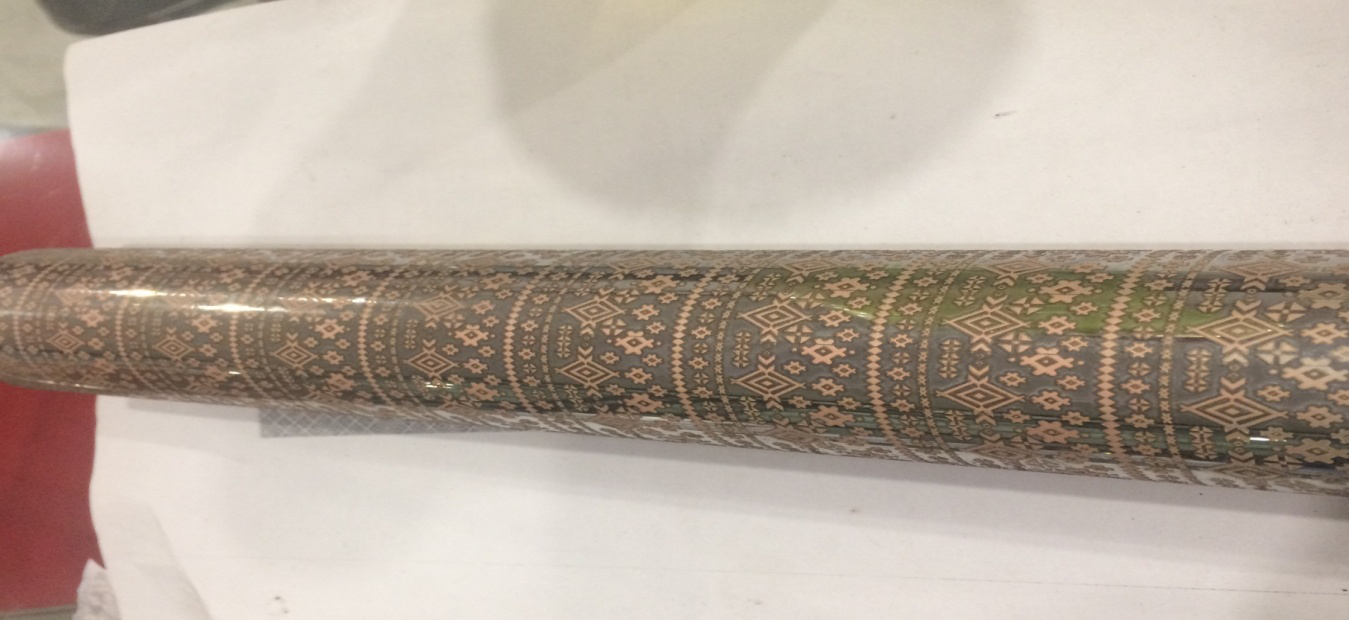

• Circumferential seamless laser texturing on cylindrical parts.
• Circumferential seamless laser engraving on cylindrical parts.
• Laser cleaning on circumferential surface of cylindrical components.

Rotary attachments:

Rotary: DIA-75	Rotary: DIA-150
Maximum diameter that can be clamped: 75 mm Maximum weight* that can be clamped: 1.5 Kg *Of limited height and length	Maximum diameter that can be clamped: 150mm Maximum weight that can be clamped: 1.5 Kg *Of limited height and length
